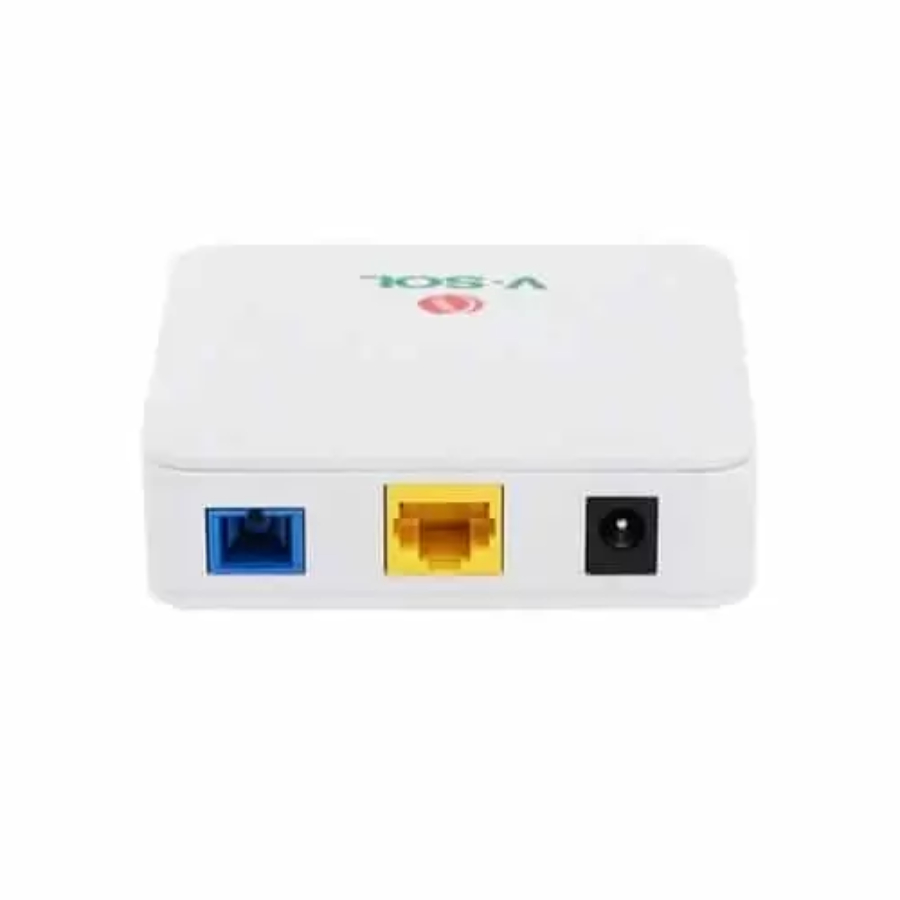

VSOL V2801SG XPON Secure ONU (1GE)

Brand:

Quick Overview

  • PON Interface – 1G X-PON
  • PON Port Connector Type – Unmentioned

Original price was: 1,350.00৳ .Current price is: 1,200.00৳ .

Add to wishlist
20 People watching this product now!

Payment Methods:

Description

General
Brand
V-Sol
Model
V-Sol V2801SG
PON Info
PON Type
XPON
PON Interface
1G X-PON
PON Port Connector Type
Unmentioned
PON Port Interface Type
SC/UPC
PON Port Transmission Distance
20KM
PON Port Wavelength
Tx 1310nm, Rx 1490nm
PON Port TX Power
0 to +4dBm
PON Port Rx Sensitivity
-27dBm
PON Port Saturation Optical Power
-3dBm (EPON) or -8dBm(GPON)
Technical Info
Ethernet Interface
1 x 1000Mbps RJ45 LAN
Network Management
OMCI, WEB, Telnet, OAM
Management Function
Support CTC OAM 2.0 and 2.1, Support ITUT984.x OMCI, Support WEB, Support TELNET, Support CLI
Power Info
Power Supply
DC 12V, 0.5A, external AC-DC power adaptor
Approx. Power Consumption
<-4W
Operating Temperature
10 Degree C to +55 Degree C
Operating Humidity
5 – 95% (non-condensing)
Working Temperature
10 Degree C to +55 Degree C
Storing/Storage Temperature
-40 Degree C to 70 Degree C
Storing/Storage Humidity
5 – 95% (non-condensing)
Physical Description
Dimension
82 x 82 x 25mm
Weight (Kg)
0.085 Kg
Warranty
Warranty Details
2 Year (Adapter No Warranty)
Additional Info
Others
Indicators SYS, LINK/ACT, REG, 1 XPON port(EPON PX20+ & GPON Class B+), XPON Mode Dual mode,Auto-access to EPON/GPON OLT, Uplink Mode Bridging and Routing Mode, Abnormal: protection Detecting Rogue ONU, Hardware Dying Gasp, Firewall DDOS, Filtering Based on ACL/MAC/URL, Basic: Support MPCP discover&register, Support authentication Mac/Loid/Mac+Loid, Support Triple Churning, Support DBA bandwidth, Support auto-detecting, auto-configuration, and auto firmware upgrade, Support SN/Psw/Loid/Loid+Psw, authentication, Alarm: Support Dying Gasp, Support Port Loop Detect, Support Eth Port Los, LAN: Support Port rate limiting, Support Loop detection, Support Flow control, Support Storm control, VLAN: Support VLAN tag mode, Support VLAN transparent mode, Support VLAN trunk mode(max 8 vlans), Support VLAN 1:1 translation mode(<-8 vlans), Multicast: Support IGMPv1/v2/Snooping, Max Multicast vlan 8, Max Multicast Group 64, QOS: Support 4 queues, Support SP and WRR, Support 802.1P, L3: Support IPv4/IPv6, Support DHCP/PPPOE/Static IP, Support Static route, Support NAT
