General
Brand
TP-Link
Model

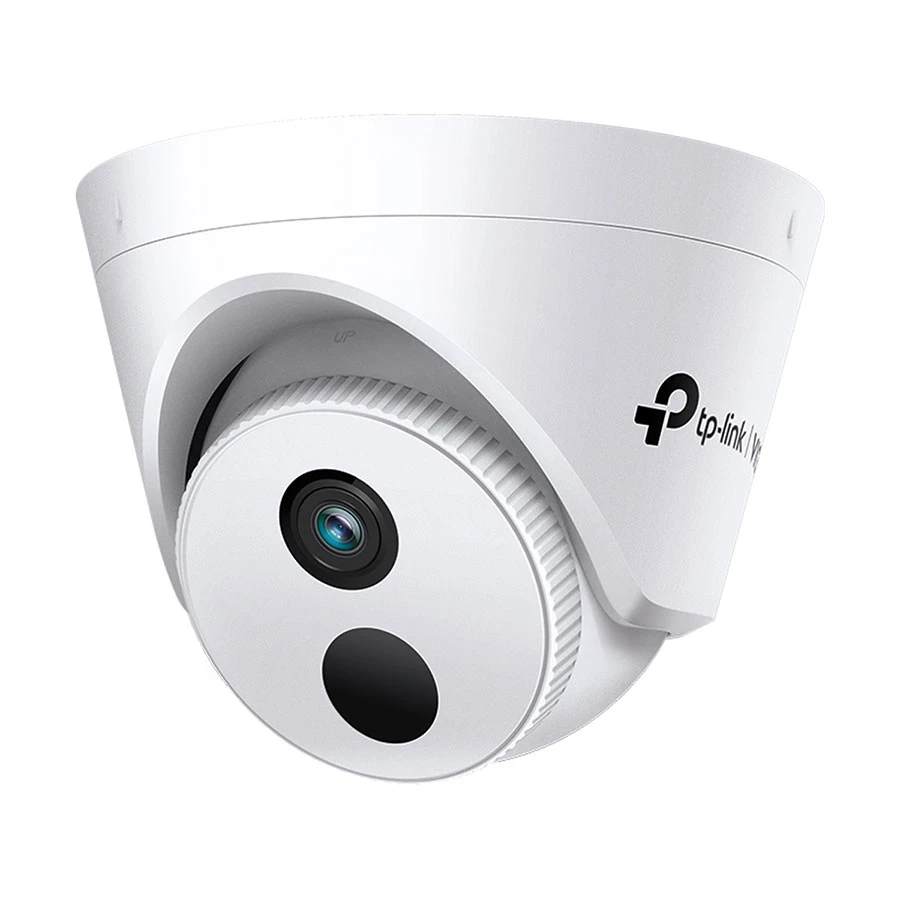

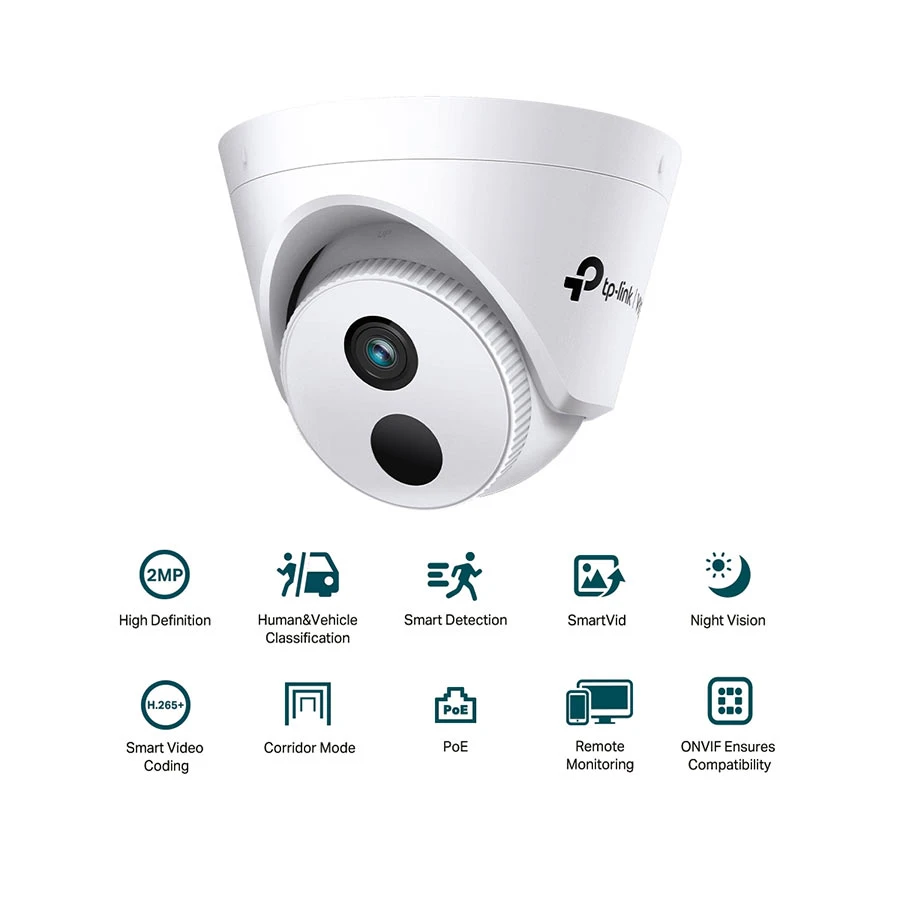

TP-Link VIGI C420I
Usage
Indoor
Type
Turret Dome IP Camera
Camera
Number of Camera
1
Camera Type
Fixed
Mega Pixels (MP)
2.0
Max. Camera Resolution
1920 x 1080
Secondary Camera Type
Not Applicable
Secondary Camera Mega Pixel (MP)
Not Applicable
Secondary Camera Max Resolution
Not Applicable
Sensor Type.
1/3 Inch Progresive Scan CMOS
Resolution
1920×1080, 1280×960, 1280×720, 704×576, 640×480, 352×288, 320×240
Shutter Speed
1/3 to 1/10000 s
Slow Shutter
Yes
Day & Night
IR Cut Filter
Night Vision
Yes
Night Vision Mode
Black and White
S/N Ratio
52dB
Lens
Number of Lens
Single Lens (Primary)
Lens
2.8mm
Lens Mount
M12
Lens Adjustment Range
Pan: 0 to 360 degree, Tilt: 0 to 85 degree, Rotate: 0 to 360 degree
Focal Length
2.8mm
PTZ
No
Viewing Angle.
88.2 Degree (H), 48.7 Degree (V), 106.5 Degree (D)
General Function
Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Dual-Stream
Yes
Frame Rate
Main Stream: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps, Sub-Stream: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Noise Reduction
Yes
Digital Noise Reduction (DNR)
3D DNR
Wide Dynamic Range (WDR)
DWDR
Network & Connectivity
Sim Supported
No
Sim Network Type
Not Applicable
Interface(s)
RJ-45 (10/100 Base-T)
Wi-Fi
No
Security
Security
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Password Protection
Yes
Motion Detection
Yes
Human Detection
Yes
Dust Protection
No
Water Protection
No
Weather Proof
No
Simultaneous Live View
3 Main Streams & 3 Sub-Streams
Technical Info
Scanning System
Progressive
Video Type
H.265+/ H.265/ H.264+/ H.264/ H.265/ H.264
Wavelength
850nm
Mic & Speaker
No
Output Notification
Message Push
Working Distance
45 Meter
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Physical Description
Form-Factor
Dome
Smart Alarm
Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Card Slot
No
Storage Type
FTP
Button
No
Body Material
Plastic
Color
White
Dimensions
123 x 83 x 123mm
Weight (gm)
0.19 Kg
Power
Power
PoE
Battery Capacity
Not Applicable
Battery Backup
No
Battery Backup Time
Not Applicable
Power Supply
PoE (802.3af/at, class 0)
Approx. Power Consumption
Class 0 (PoE)
Operating Temperature
-30 to 60 degree C
Storing/Storage Temperature
-40 to 60 degree C
Operating Humidity
95% or Less (Non-Condensing)
Storing/Storage Humidity
95% or Less (Non-Condensing)
Warranty
Warranty Details
2 Year (Without Adapter)
Additional Info
Others
Day/Night Switch: Unified/ Scheduled/ Auto, IR Working Distance: 30m, Aperture: F2.2, Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR, API: ONVIF, Client: VIGI App, VIGI Security Manager, VIGI NVR, Package Contents: VIGI Network Camera Quick Start Guide Mounting Accessories, Certifications: CE/BSMI/VCCI/ONVIF, Basic Event: Motion Detection, Video Tampering Detection, Exception (Illegal Login), Alarm Linkage: Message Push, Video Streaming: Main Stream Sub-Stream, Image Enhancement: BLC/3D DNR/HLC/SmartIR, Video Bit Rate: 64 Kbps to 4 Mbps, Day/Night Switch: Day/Night/Auto/Schedule, IR LED: Quantity: 1 Range: 30m Wavelength: 850nm, Bit Rate Control: CBR, VBR, Image Enhancement: BLC/3D DNR/HLC/SmartIR, Privacy Mask: Up to 4 Masks.
Specialty
The VIGI C420I camera comes with 2MP more than enough pixels to pick up some of the more discrete details, Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications, Allows you to change the image aspect ratio from 16:9 to 9:16, and helps to monitor long and narrow areas, Take full control over your security via three management methods: NVR UI, VIGI app, and VIGI Security Manager.
Country Of Origin
China
Made in/ Assemble
China
