-2%
General
Brand
TP-Link
Model
TP-Link Tapo C545D
Usage
Outdoor
Type
IP Camera
Camera
Number of Camera
2
Camera Type
Pan & Tilt
Mega Pixels (MP)
3.0 & 3.0
Max. Camera Resolution
Unmentioned
Secondary Camera Type
Pan & Tilt
Secondary Camera Mega Pixel (MP)
3.0
Sensor Type.
1/2.8 Inch Progressive Scan CMOS Sensor
Resolution
2304 x 1296
Day & Night
IR-Cut Filter with Auto-Switching
Night Vision
Yes
Night Vision Mode
Color
Lens
Number of Lens
Single Lens (Primary), Dual Lens (Secondary)
Lens
6mm & 2.5mm
Lens Adjustment Range
66.5 Degree (Diagonal), 57.3 Degree (Horizontal), 31.7 Degree (Vertical); 165.1 Degree (Diagonal), 137.6 Degree (Horizontal), 73.0 Degree (Vertical)
Focal Length
6 mm -+ 5%, 2.53 mm -+ 5%
PTZ
No
Viewing Angle.
66.5 Degree (Diagonal), 165.1 Degree (Diagonal)
Frame Rate
15 fps
Digital Noise Reduction (DNR)
3DNR
Wide Dynamic Range (WDR)
WDR
Network & Connectivity
Sim Supported
No
Interface(s)
1x RJ45 (10M/100M) Ethernet Port, 1x microSD Card Slot (Up to 512 GB)
Wi-Fi
Yes
Wi-Fi Details
IEEE 802.11 b/g/n/ax, 2.4GHz
Security
Defense System
Motion Detection, Person Detection
Wireless Security
WPA/WPA2-PSK/WPA3
Security
On-Device Machine Learning, 128-bit AES Encryption with SSL/TLS
Motion Detection
Yes
Human Detection
Yes
Dust Protection
Yes
Water Protection
Yes

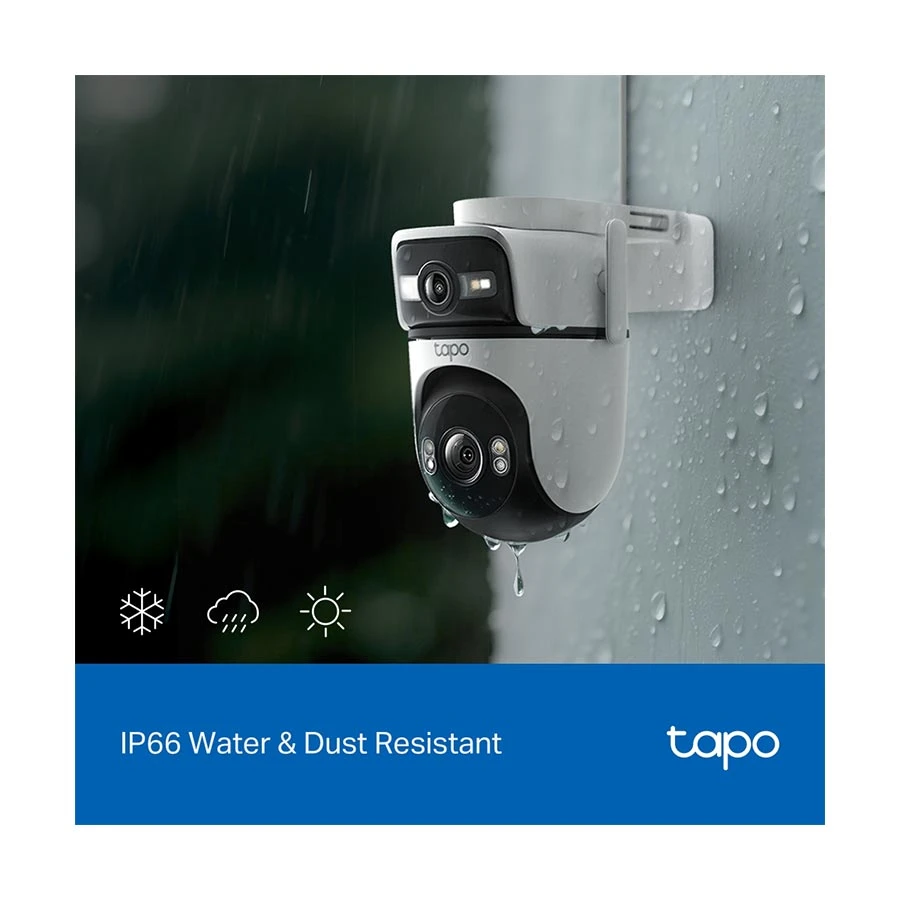

Weather Proof
Yes
Simultaneous Live View
Yes
Technical Info
Scanning System
Progressive
Video Type
H.264
Mic & Speaker
Both Mic and Speaker
Audio Communication
Two-Way Audio with Noise Cancellation
Frequency
2.4GHz
Output Notification
System Notification
Ingress Protection Grade
Yes
Working Distance
Unmentioned
Protocols
TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP
Physical Description
Form-Factor
Dome
Card Slot
Yes
Storage Type
MicroSD
Button
1x RESET Button
Color
Black & White
Dimensions
114.57 x 159.55 x 152.1mm
Weight (gm)
491 gm
Relevant Accessories (Not Included)
Tapo C545D Camera x1 Mounting Bracket x1 Mounting Template Sticker x1 Mounting Screws x4 Mounting Anchors x4 Waterproof Seal x1 Waterproof Cable Attachments x1 Power Adapter x1 Quick Start Guide.
Power
Power
12 V DC Power Adapter
Approx. Power Consumption
11.2W
Operating Temperature
-30 – 60 Degree C
Storing/Storage Temperature
-40 – 60 Degree C
Operating Humidity
10% – 90% RH, Non-condensing
Storing/Storage Humidity
0 – 90% RH, Non-condensing
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Others
Night Vision: 850 nm IR LED (99 ft / 29.9 m), Color Night Vision. Maximum Resolution: 2K 3MP (2304 x 1296 px) + 2K 3MP (2304 x 1296 px). Siren Volume: 99 dB (Level measured at 4-inch/10-cm distance). AI Detection: Motion Detection, Person Detection, Pet Detection, Vehicle Detection, Line-Crossing Detection, Camera Tampering. Activity Zones: Yes, Only works with Motion/Person/Pet/Vehicle Detection. Network: RTSP, ONVIF. Input Voltage: 100-240 V, 50/60 Hz, Output Voltage: 12 V, 1 A (DC Power). Smart Integration: Google Assistant, Amazon Alexa, Samsung SmartThings. Mounting Options: Wall-Mounted, Eave-Mounted, Pole-Mounted.
Specialty
Double 2K View: The fixed lens captures the big picture with wide angle, and the pan/tilt lens captures fine details with no distortion. Dynamic Dual-Tracking: When the fixed lens detects a person, the pan/tilt lens seamlessly tracks their movement, ensuring no detail is missed. 360 Degree AI Tracking: The camera provides 360 Degree coverage and accurately identifies and tracks people, pets, and vehicles. Color Night Vision: Enhances your security by revealing brighter, full-color images and vivid details.
Country Of Origin
China
Made in/ Assemble
China
