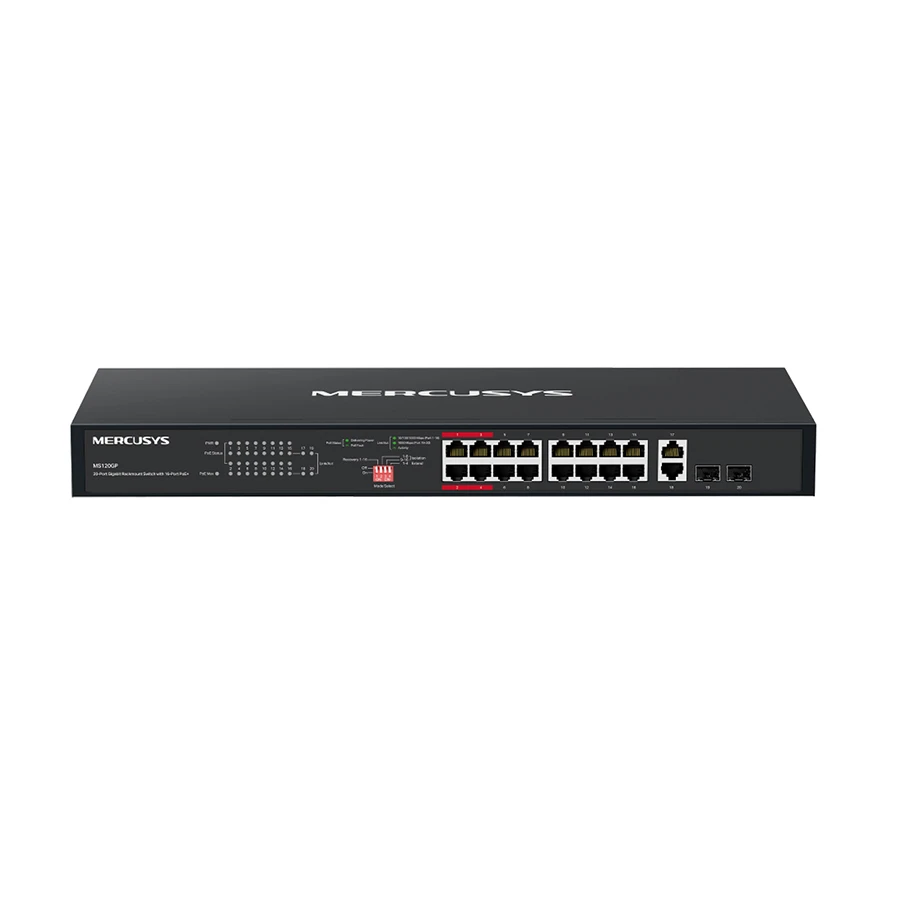

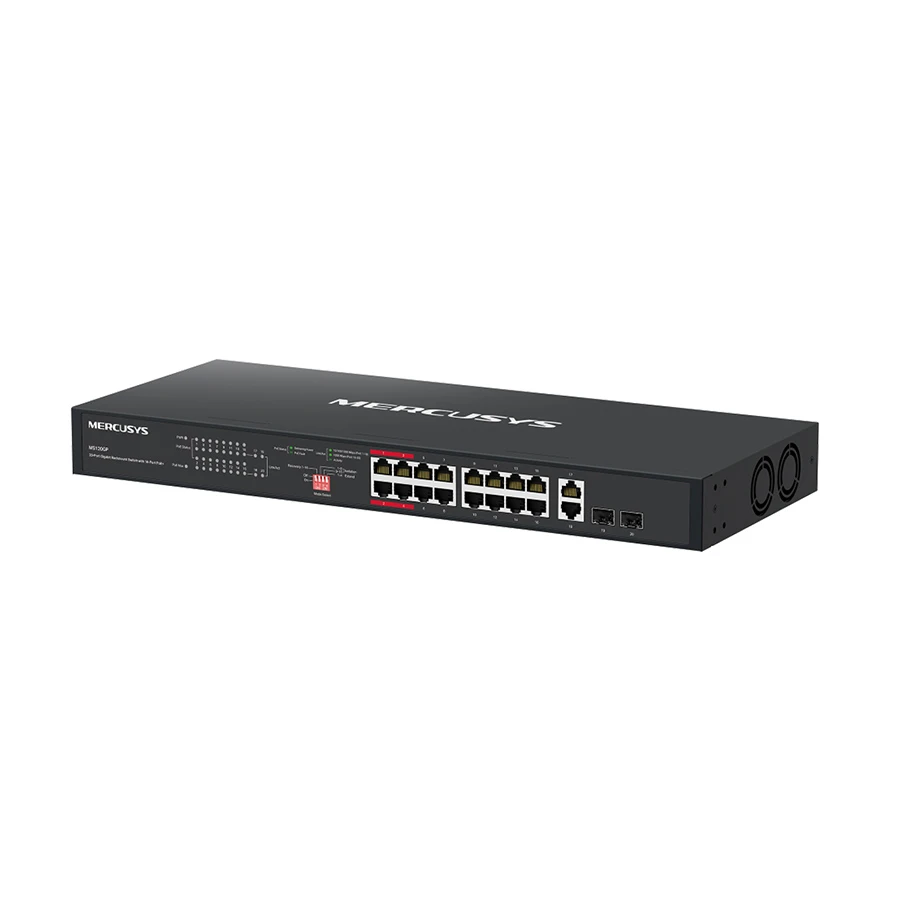

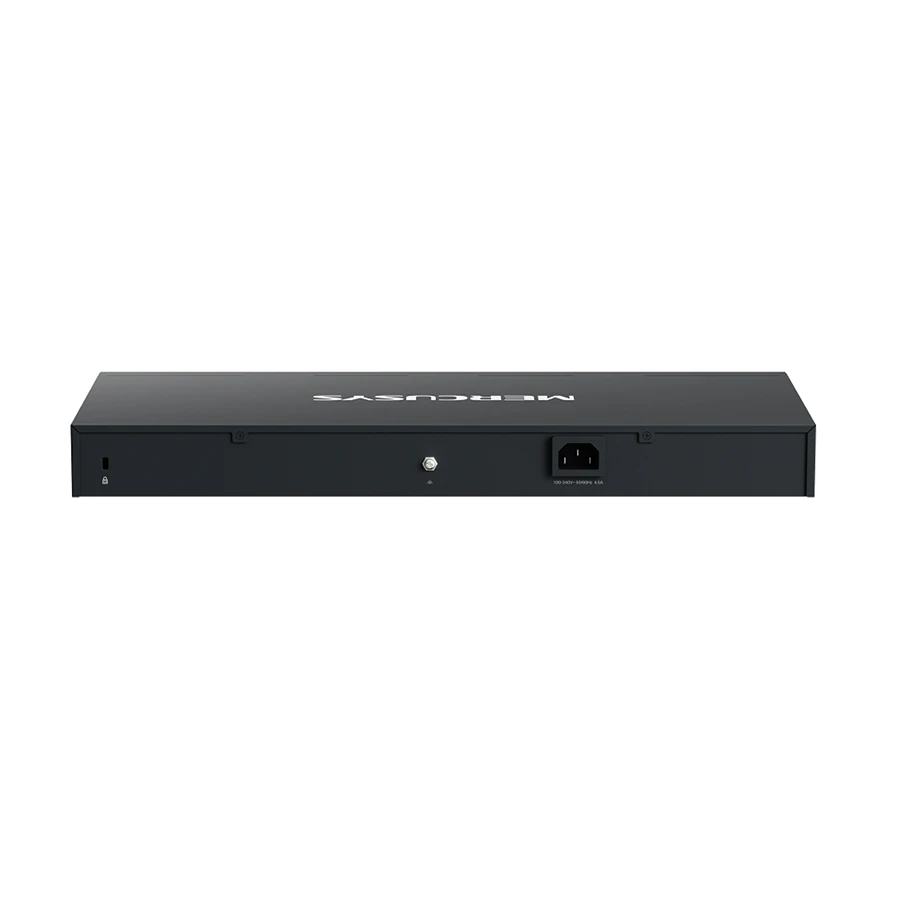

MERCUSYS MS120GP 20-Port Unmanaged Rackmount POE Switch

Brand: MERCUSYS

Quick Overview

Full Gigabit Ports: 16× Gigabit PoE+ ports, 2 × Gigabit non-PoE ports, and 2 × Gigabit SFP slots.
High Power PoE+: Support PoE Power up to 30 W for each PoE port and 192 W for all PoE ports. Working with IEEE 802.3af/at compliant PDs.
Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode.
Isolation Mode: One click to divide traffic for specific ports for stability and security.

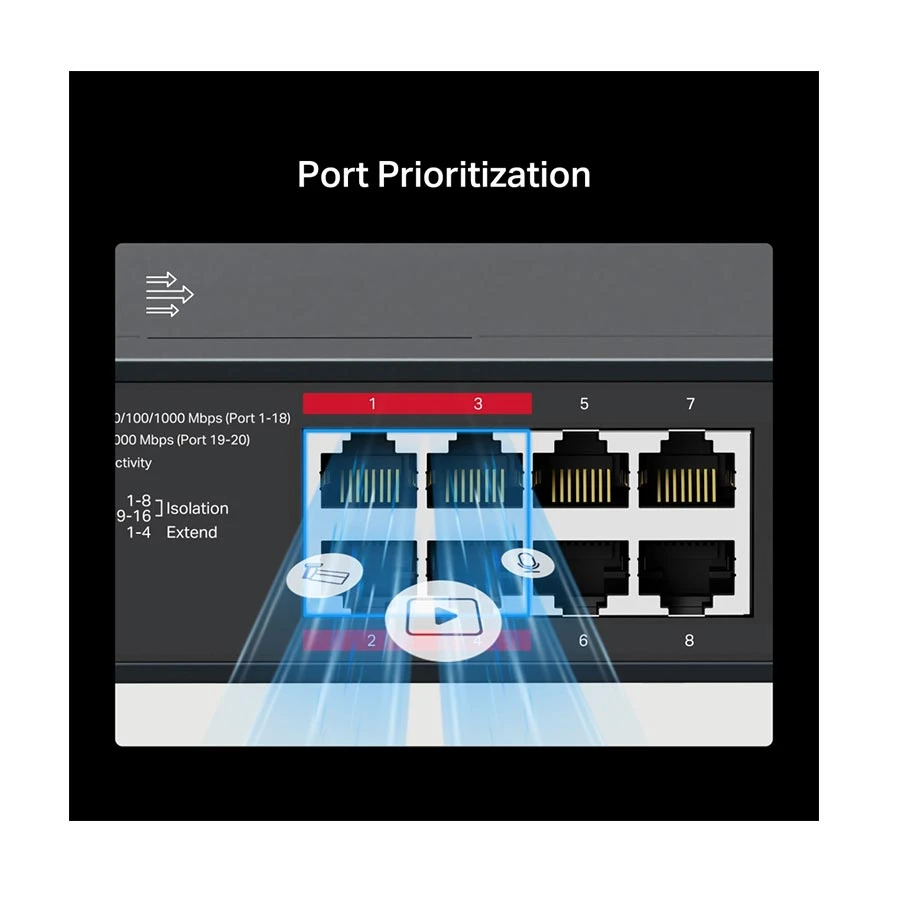

Priority Mode: Guarantees the quality of sensitive applications like video monitor.
Plug and Play: No configuration or central management required.
PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.

Original price was: 12,800.00৳ .Current price is: 12,400.00৳ .

Add to wishlist

10 People watching this product now!

Payment Methods:

Description

General

Brand

MERCUSYS

Model

MERCUSYS MS120GP

Type

Network Switch

Ports & Slots

Number of Total Port

Gigabit Port

SFP Port

PoE+ Port

Technical Info

PoE

Yes

Manageability

Unmanaged

Interface(s)

16 x 10/100/1000 Mbps PoE+ RJ45 Ports. 2 x 10/100/1000 Mbps RJ45 Ports. 2 x Gigabit SFP Slots.

Network Standards

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at

Data Transfer Rate

10/100/1000 Mbps

Transmission Method

10BASE-T: 2-pair UTP/STP of Cat. 3 or above (<=100 m). 100BASE-TX: 2-pair UTP/STP of Cat. 5 or above (<=100 m). 1000BASE-T: 4-pair UTP/STP of Cat. 5e or above (<=100 m). 1000BASE-X: MMF, SMF.

Connector Type

RJ45

Switching Capacity

40 Gbps

Physical Description

Fan/Fanless

2 Fan

Indicators

Power, Link/Act, PoE Status, PoE Max.

Body Color

Black

Form Factor

Rackmount

Dimension

440 x 180 x 44mm

Packet Contents

MS120GP, Power Cord, Installation Guide, Mounting Brackets and Fittings.

Power

Approx. Power Consumption

17.25W (220V/50 Hz 25 Degree C, with No PD connected), 219.05W (220V/50Hz 25 Degree C, with 192W PD connected).

Warranty

Warranty Details

1 Year (Without Adapter)

Additional Info

Others

PoE Ports: Standard: compatible with 802.3af/at PDs, PoE Ports: Ports 1???16, up to 30 W per port, PoE Power Budget:192W. Physical Security Lock: Yes/ MAC Address Table: 8K. Max Heat Dissipation: 744.77 BTU/hr (220V/50 Hz @ 25 ??C, with 192 W PD connected). 771.56 BTU/hr (110V/60 Hz @ 25 ??C, with 192 W PD connected). Transfer Method: Store and Forward. Compatible With IEEE 802.3at/af Compliant PDs. Extend Mode (Up to 250m PoE power supply and data transmission). Priority Ports (Ports 1-4). Isolation Mode (Ports 1-8, 9-16). PoE Auto Recovery (Ports 1-16). MAC Address Auto-Learning And Auto-Aging. IEEE802.3x Flow Control. Certifications: CE, RoHS. Operating Temperature: -10 to 50 Degree C. Storage Temperature: -40 to 70 Degree C. Operating Humidity: 10% to 90% RH, non-condensing. Storage Humidity: 5% to 90% RH, non-condensing.

Specialty

Full Gigabit Ports: 16x Gigabit PoE+ ports, 2x Gigabit non-PoE ports, and 2x Gigabit SFP slots. High Power PoE+: Support PoE Power up to 30 W for each PoE port and 192 W for all PoE ports. Working with IEEE 802.3af/at compliant PDs. Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode. Isolation Mode: One click to divide traffic for specific ports for stability and security. Priority Mode: Guarantees the quality of sensitive applications like video monitor. Plug and Play: No configuration or central management required. PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
