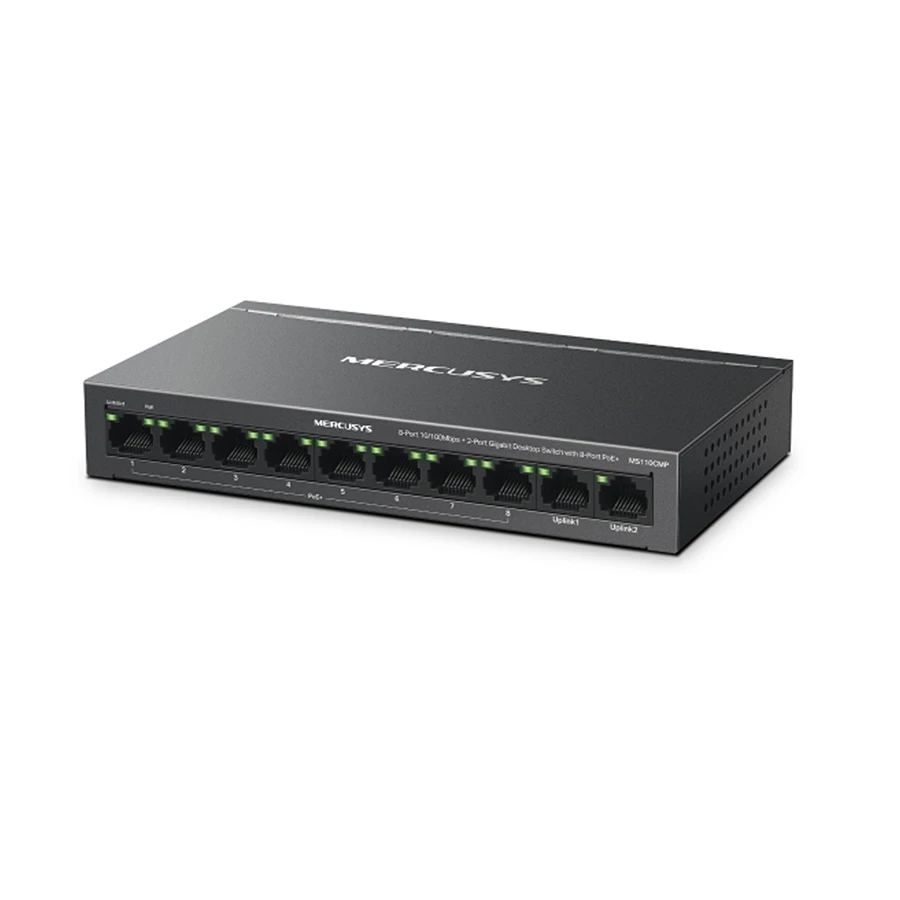

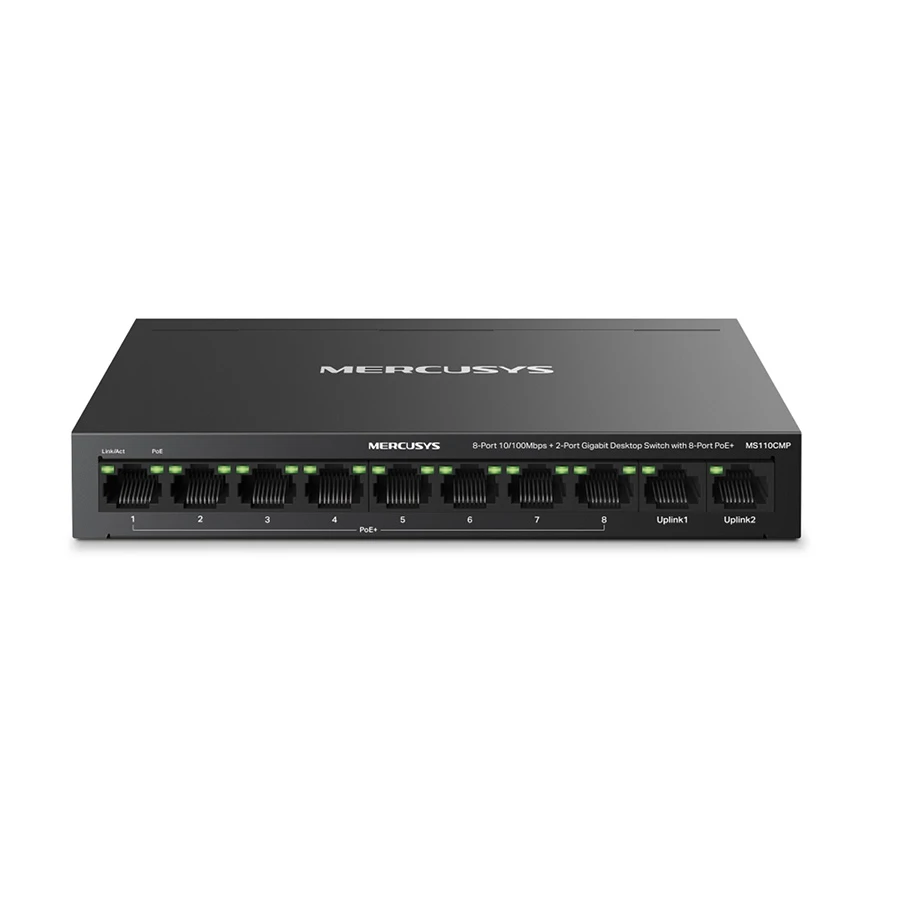

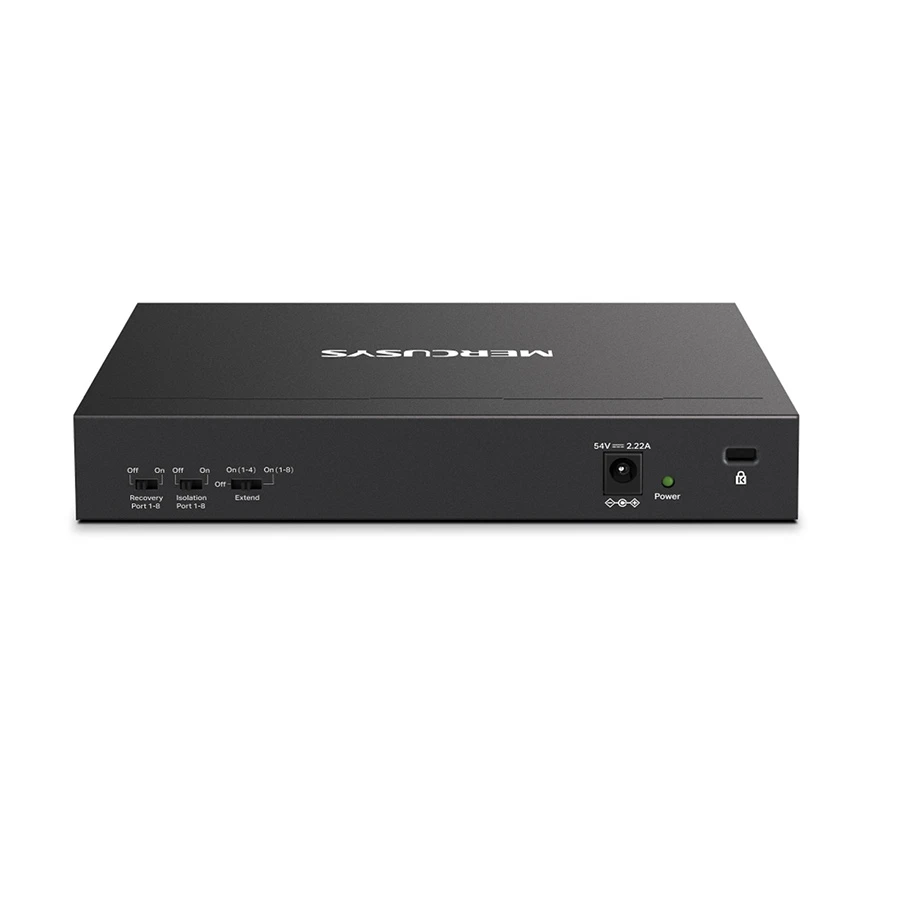

MERCUSYS MS110CMP 8-Port 10/100 Mbps + 2-Port Gigabit Desktop Switch with 8-Port PoE+

Brand: MERCUSYS

Quick Overview

10 Ports: 8× 10/100 Mbps PoE+ Ports + 2× Gigabit non-PoE Ports.
Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable.
High Power PoE+: Support PoE Power up to 30 W for each PoE port and 115 W for all PoE ports.
2× Uplink Ports: MS110CMP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode.
Isolation Mode: One click to divide traffic for specific ports for stability and security.
Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs.
Plug and Play: Simple to use and saves time and effort.
PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
Durable Metal Casing: Allows for efficient heat dissipation and long network life.

Original price was: 3,500.00৳ .Current price is: 3,300.00৳ .

Add to wishlist

20 People watching this product now!

Payment Methods:

Description

General

Brand

MERCUSYS

Model

MERCUSYS MS110CMP

Type

Desktop Switch

Ports & Slots

Number of Total Port

10 Port

Gigabit Port

SFP Port

SFP+ Port

PoE+ Port

Technical Info

PoE

Yes

Manageability

Unmanaged

Interface(s)

(8-Port 10/100Mbps PoE+ Ethernet & 2-Port 10/100/1000Mbps Ethernet Uplink)

Network Standards

IEEE 802.3af/at

Data Transfer Rate

10/100/1000 Mbps

Connector Type

RJ45

Switching Capacity

5.6Gbps

Physical Description

Body Material

Metal

Body Color

Black

Form Factor

Desktop

Dimension

171 x 98 x 27 mm

Packet Contents

10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110CMP), Power Adapter, Quick Installation Guide

Power

Power Supply

External Power Adapter (Output: 54V/2.2A)

Approx. Power Consumption

3.79W(220 V/50 Hz, no PD connected, 130.49W(220 V/50 Hz, with 115W PD connected

Warranty

Warranty Details

1 Year (Without Adapter)

Additional Info

Others

Operating Temperature: -10 Degree C- 40 Degree C, Storage Temperature: -40 Degree C – 70 Degree C, Operating Humidity: 10%-90% RH non-condensing, Storage Humidity: 5%-95% RH non-condensing, Max Heat Dissipation: 12.92 BTH/h(no PD connected), 444.97 BTH/h(with 115W PD connected), MAC Address Table: 2K, Jumbo Frame: 2 KB, Data Rates: 10/100 Mbps at Half Duplex, 20/200 Mbps at Full Duplex

Specialty

Two Cables in One, High Power PoE+, 2x Uplink Ports, Long-Range up to 250 m, Isolation Mode, Compliant with Powered Devices, Plug and Play, PoE Auto Recovery, Durable Metal Casing
