General
Brand
TP-Link
Model

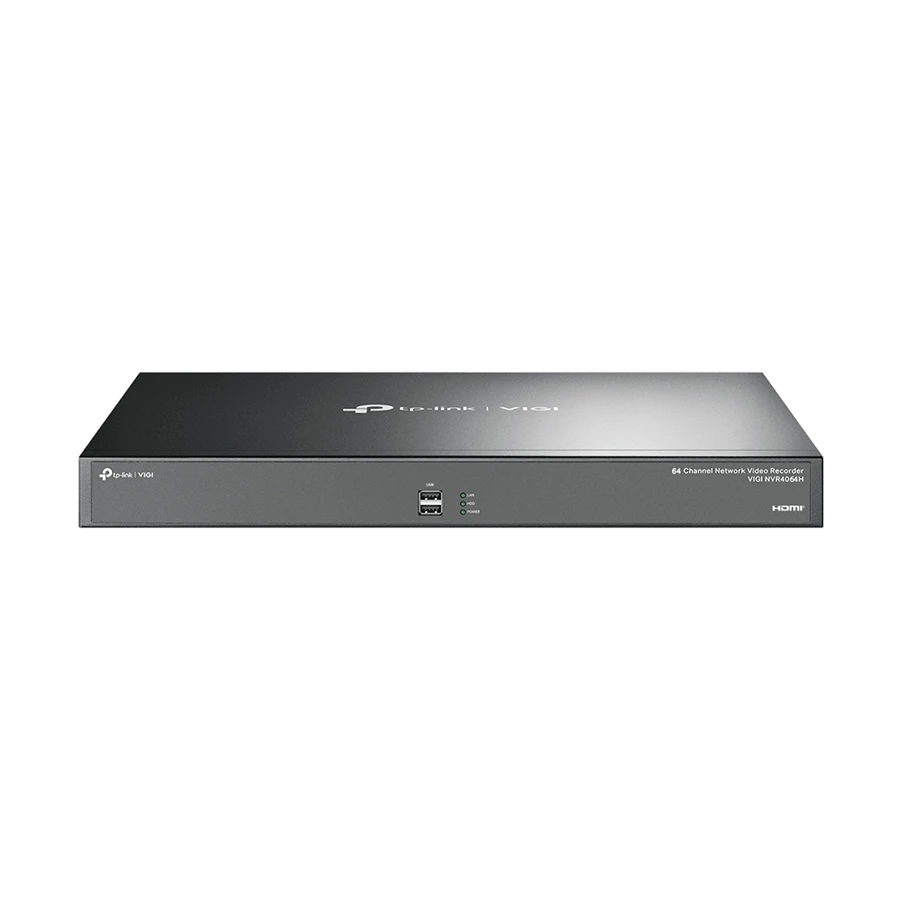

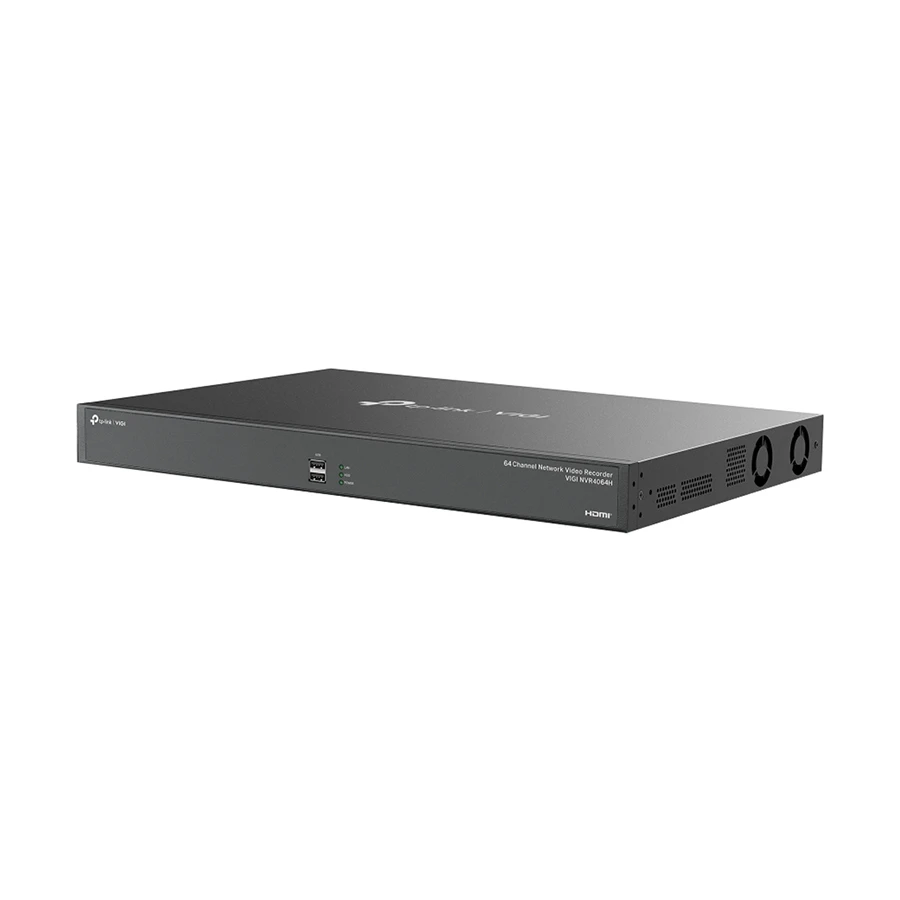

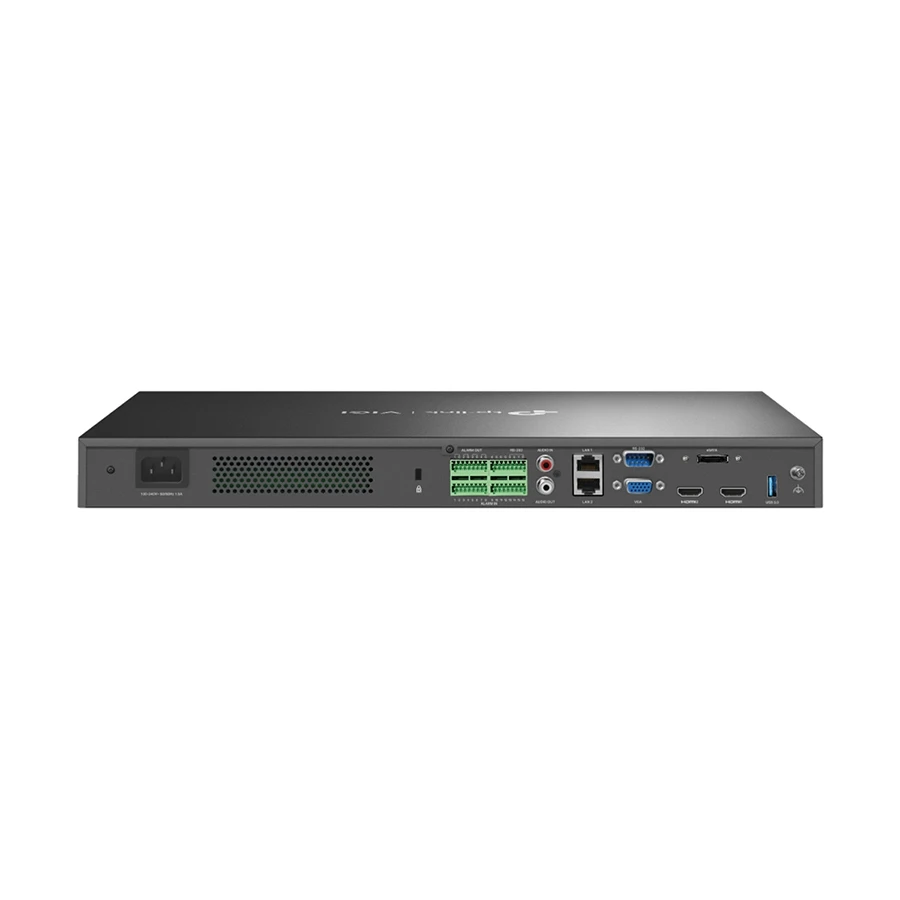

TP-Link VIGI NVR4064H
Type
64 Channel NVR
Video Info
Number of Input Channel
64 Channel
Video Compression/Format
H.265+/ H.265/ H.264+/ H.264
Video Output (VGA)
1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
Video Output (HDMI)
2 Channels (HDMI1 Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz), (HDMI2 Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz)
Video Output (BNC)
No
Video Recording Res.
8MP/ 5MP/ 4MP/ 3MP/ 1080p/ UXGA/ 720p/ VGA/ 4CIF/ DCIF/ 2CIF/ CIF/ QCIF
Max. Video Recording Res.
1920 x 1080
IP Video Input
64 Channel
Audio Info
Audio Compression
G.711A/ G.711U/ G.726
Audio Output Channel
1 Channel RCA
Recording & Decoding
Dual Stream Support
Unmentioned
Live View / Playback Resolution
4K
Decoding Capability
25fps: 16-ch@2MP, 32-ch@720P, 64-ch@D1, 30fps: 4-ch@8MP, 6-ch@5MP, 8-ch@4MP.
Synchronous Playback
16-Channel
Network
Network Protocol
UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Wi-Fi
No
Network Interface (RJ45)
2 x RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
POE Interface
No
Auxiliary Interface
Number HDD Interface (SATA)
4 SATA
Max HDD Support (GB,TB)
Up to 16TB capacity for each disk
Max. Storage Support
64TB
eSATA
1
Serial Interface
1 x RS-232
USB Port
2 x Front USB 2.0 Ports, 1 x Rear USB 3.0 Port
Technical Info
Display Split
1/ 4/ 6/ 8/ 9/ 16/ 25/ 32/ 36/ 49/ 64 (Multi-screen Display)
Incoming Bandwidth
260Mbps (Default), 320Mbps (Extended)
Outgoing Bandwidth
180Mbps (Default), 320Mbps (Extended)
Interoperability
ONVIF Profile S, CGI
Video Detection
Motion Detection, Video Tampering, Scene Change Detection, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Loitering Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Abnormal Sound Detection, Smart Frame.
Compatibility
Smart Phone Supported
Android, iOS
Power Info
Power Supply
100-240 VAC, 50 to 60Hz, 1.5A
Approx. Power Consumption
9W
Physical Description
Color
Black
Dimensions
440 x 330 x 44mm
Weight (Kg)
4.0 Kg
Package Includes
VIGI Network Video Recorder, Mouse, Installation Guide, Power Cord, HDD Power Cables, HDD Data Cables, Terminal Blocks, Mounting Brackets, Screws, Rubber Feet.
Warranty
Warranty Details
2 Years
Additional Info
Feature
64-Channel Live View and 4K HDMI Video Output, Up to 16-ch@2MP (25fps) / 8-ch@4MP (30fps) Decoding Capability, 16-Channel Synchronous Playback, 320 Mbps Incoming Bandwidth and 320 Mbps Outgoing Bandwidth, 4 x SATA Interfaces and 1 Up to 16TB, H.265+ Compression Technology, HDMI and VGA Simultaneous Output, Remote Monitoring.
Others
Record Mode: Manual Recording, Scheduling Recording, Motion Detection Recording, Playback Mode: (Instant Playback, Regular Playback, Tag Playback, Event Playback, Backup Mode: Regular Backup, Video Clip Backup, Playback Function: (Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off), Web Browser: Chrome (57+), Firefox (52+), Edge (91+), Reset Button: 1 Storage Temperature: -40 to 70 degree C, Storage Humidity: 10% to 90% RH Non-Condensing, Working Temperature: NVR: -10 to 55 degree C, Working Humidity: 10% to 90% RH Non-Condensing, Certifications: CE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIF.
Country Of Origin
China
Made in/ Assemble
China
