General
Brand
TP-Link
Model
TP-Link VIGI C340I
Usage
Outdoor
Type
IP Camera
Camera
Number of Camera
1
Camera Type
Fixed
Mega Pixels (MP)
4.0
Max. Camera Resolution
2560 x 1440
Secondary Camera Type
Not Applicable
Secondary Camera Mega Pixel (MP)
Not Applicable
Secondary Camera Max Resolution
Not Applicable
Sensor Type.
1/3 Inch Progressive Scan CMOS
Resolution
2560×1440,2304×1296, 2048×1280, 1920×1080, 1280×720, 640×480,352×288, 320×240
Shutter Speed
1/3 to 1/10000 s
Slow Shutter
Yes
Day & Night
IR Cut Filter
Night Vision
Yes
Night Vision Mode
Black and White
S/N Ratio
>= 52 dB
Lens
Number of Lens
Single Lens (Primary)
Lens
4mm
Lens Mount
M12
PTZ
No
Viewing Angle.
87.4 Degree (Diagonal)
General Function
Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Frame Rate
1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Noise Reduction
Yes
Digital Noise Reduction (DNR)
3D DNR
Wide Dynamic Range (WDR)
DWDR
Network & Connectivity
Sim Supported
No
Sim Network Type
Not Applicable
Interface(s)
1 x RJ45 10/100M Self-Adaptive Ethernet Port
Wi-Fi
No
Security
Security
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Password Protection
Yes
Motion Detection
Yes
Human Detection
Yes
Dust Protection
Yes
Water Protection
IP67
Weather Proof
Yes
Simultaneous Live View
3 Main Streams & 3 Sub-Streams
Technical Info
Scanning System
Progressive
Video Type
H.265+ / H.265 / H.264+ / H.264
Wavelength
850nm
Mic & Speaker
No
Output Notification
ONVIF, HTTPS
Working Distance
80 Meter
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Physical Description
Form-Factor
Bullet
Storage Type
FTP, NAS
Indicator LED
IR LED, Illuminator On/Off Control: Auto/Scheduled/Always on/Always off
Body Material
Plastic
Color
Black & White
Dimensions
73 x 174 x 71mm
Weight (gm)
200 gm (Net)
Power
Power
DC / PoE
Battery Capacity
Not Applicable
Battery Backup
No
Battery Backup Time
Not Applicable
Power Supply
12V DC -+ 5%, 5.5mm Coaxial Power Plug, PoE (802.3af/at, class 0).
Approx. Power Consumption
5W
Operating Temperature
-30 to 60 Degree C
Storing/Storage Temperature
-40 to 60 Degree C
Operating Humidity
95% or Less (Non-Condensing)
Storing/Storage Humidity
95% or Less (Non-Condensing)
Warranty
Warranty Details
2 Years (Without Adapter)
Additional Info
Others
Day/Night Switch: Day/Night/Auto/Schedule-Switch, IR Working Distance: 30m. Aperture: F2.2 . Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR. API: ONVIF. Client: VIGI App, VIGI Security Manager, VIGI NVR, Web. Network Storage: NAS (NFS, SMB/ CIFS). Certifications: CE/BSMI/VCCI/ONVIF. Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection. Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login). Alarm Linkage: Message Push. Output Notification: Message Push. Video Streaming: Main Stream, Sub-Stream. Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90 Degree/270 Degree). Image Enhancement: BLC/3D DNR/HLC/SmartIR. Video Bit Rate: 64 Kbps to 4 Mbps. IR LED: (Quantity: 2, Range: 30m, Wavelength: 850nm). Bit Rate Control: CBR, VBR. Package Contents: VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories. DORI Distance: Detect: 80 m. Observe: 33 m. Recognize: 16 m. Identify: 8 m.
Specialty

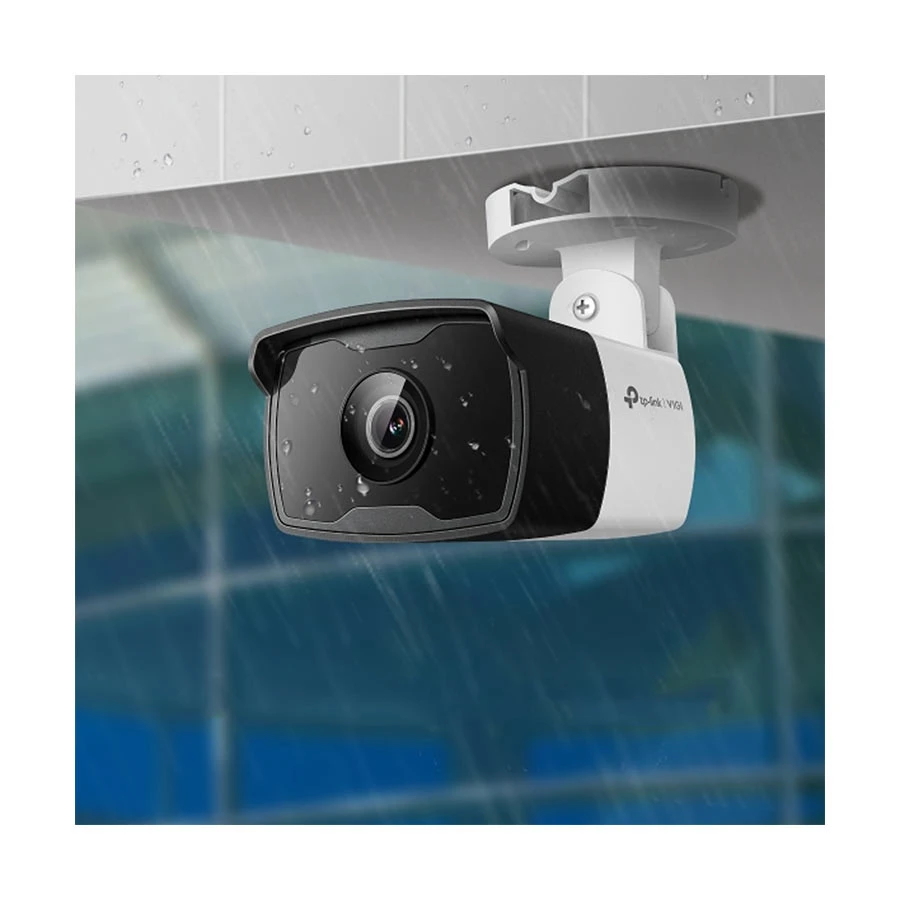

Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications. Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you`ve set, obstructs the camera, or removes/abandons objects. Waterproof: Reliable IP67 for stable outdoor performance.
Country Of Origin
China
Made in/ Assemble
China
