General
Brand
TP-Link
Model
TP-Link VIGI C330I
Usage
Outdoor
Type
IP Camera
Camera
Number of Camera
1
Camera Type
Fixed
Mega Pixels (MP)
3.0
Max. Camera Resolution
2304 x 1296
Secondary Camera Type
Not Applicable
Secondary Camera Mega Pixel (MP)
Not Applicable
Secondary Camera Max Resolution
Not Applicable
Sensor Type.
1/2.8 Inch Progressive Scan CMOS
Resolution
2304×1296, 2048×1280, 1920×1080, 1280×720, 704×576, 640×480, 352×288, 320×240
Shutter Speed
1/3 to 1/10000 s
Slow Shutter
Yes
Day & Night
IR Cut Filter
Night Vision
Yes
Night Vision Mode
Black and White
S/N Ratio
>= 52 dB
Lens
Number of Lens
Single Lens (Primary)
Lens
4mm
Lens Mount
M12
Focal Length
4mm
PTZ
No
Viewing Angle.
98 Degree (D)
General Function
Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Frame Rate
1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Noise Reduction
Yes
Digital Noise Reduction (DNR)
3D DNR
Wide Dynamic Range (WDR)
DWDR
Network & Connectivity
Sim Supported
No
Sim Network Type
Not Applicable
Interface(s)
1 x RJ45 10/100M Self-Adaptive Ethernet
Wi-Fi
No
Security
Security
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Password Protection
Yes
Motion Detection
Yes
Human Detection
Yes
Water Protection
IP67
Simultaneous Live View
3 Main Streams & 3 Sub-Streams
Technical Info
Scanning System
Progressive
Video Type
H.265+/H.265/H.264+/H.264
Wavelength
850nm
Mic & Speaker
No
Working Distance
65 Meter
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Physical Description
Form-Factor
Bullet
Card Slot
No
Storage Type
No
Indicator LED
IR LED
Body Material
Plastic
Color
Black & White
Dimensions
174 x 74 x 71mm
Weight (gm)
200 gm (Net)
Power
Power
DC / PoE
Battery Capacity
Not Applicable
Battery Backup
No
Battery Backup Time
Not Applicable
Power Supply
12V DC -+ 5%, 5.5mm Coaxial Power Plug, PoE (802.3af/at, class 0)
Approx. Power Consumption
5W
Operating Temperature
-30 to 60 Degree C
Storing/Storage Temperature
-40 to 60 Degree C
Operating Humidity
95% or Less (Non-Condensing)
Storing/Storage Humidity
95% or Less (Non-Condensing)
Warranty
Warranty Details
2 Years (Without Adapter)
Additional Info
Others
Day/Night Switch: Day/Night/Auto/Schedule-Switch, IR Working Distance: 30m, Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR, ONVIF: Yes, API: ONVIF, Client: VIGI App, VIGI Security Manager, VIGI NVR, Web. Network Storage: NAS (NFS, SMB/ CIFS). Package Contents: VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories. Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login). Video Streaming: Main & Sub Stream. Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90/270 Degree), Image Enhancement: BLC/3D DNR/HLC/SmartIR. Video Bit Rate: 64 Kbps to 4 Mbps. Illuminator On/Off Control: Auto/Scheduled/Always on/Always off. DORI Distance: Detect: 65 m, Observe: 27 m, Recognize: 13 m, Identify: 7 m. Angle Adjustment (Manual): Pan: -90 to 90 Degree, Tilt: -90 to 90 Degree. Bit Rate Control: CBR, VBR. Privacy Mask: Up to 4 Masks.
Specialty

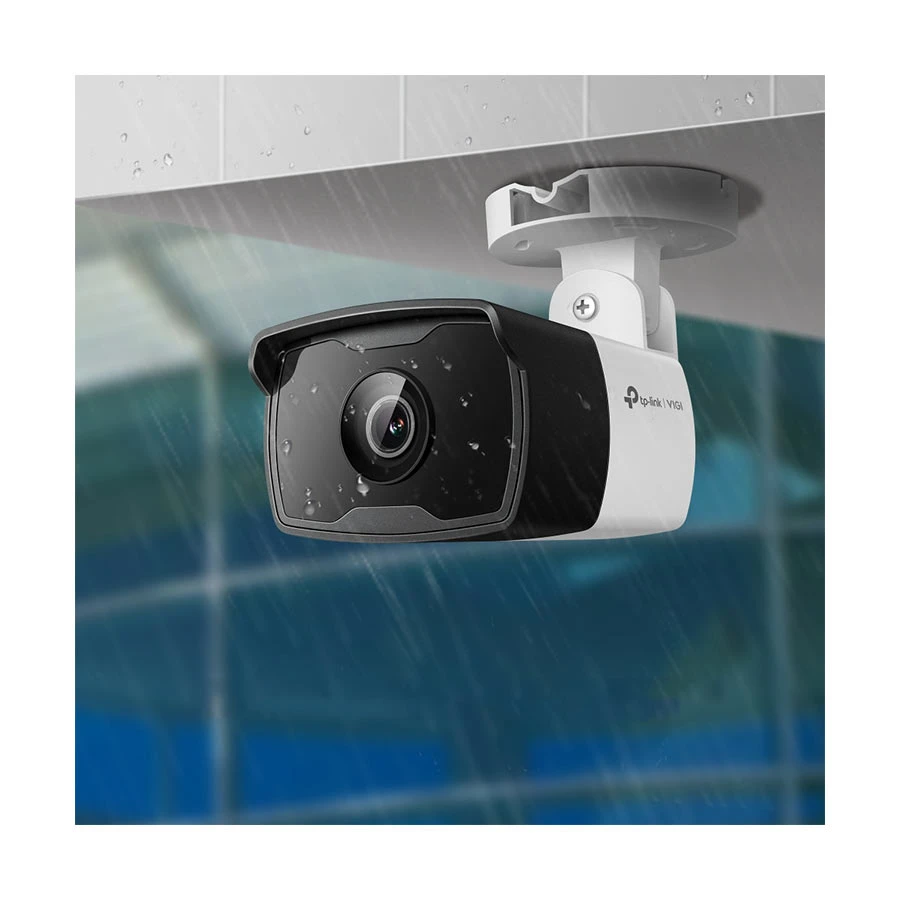

3MP Super-High Definition: The VIGI C330I camera comes with 3MP more than enough pixels to pick up some of the more discrete details. Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications. Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you`ve set, obstructs the camera, or removes/abandons objects.Waterproof: Reliable IP67 for stable outdoor performance.
Country Of Origin
China
Made in/ Assemble
China
