-14%
General
Brand
TP-Link
Model

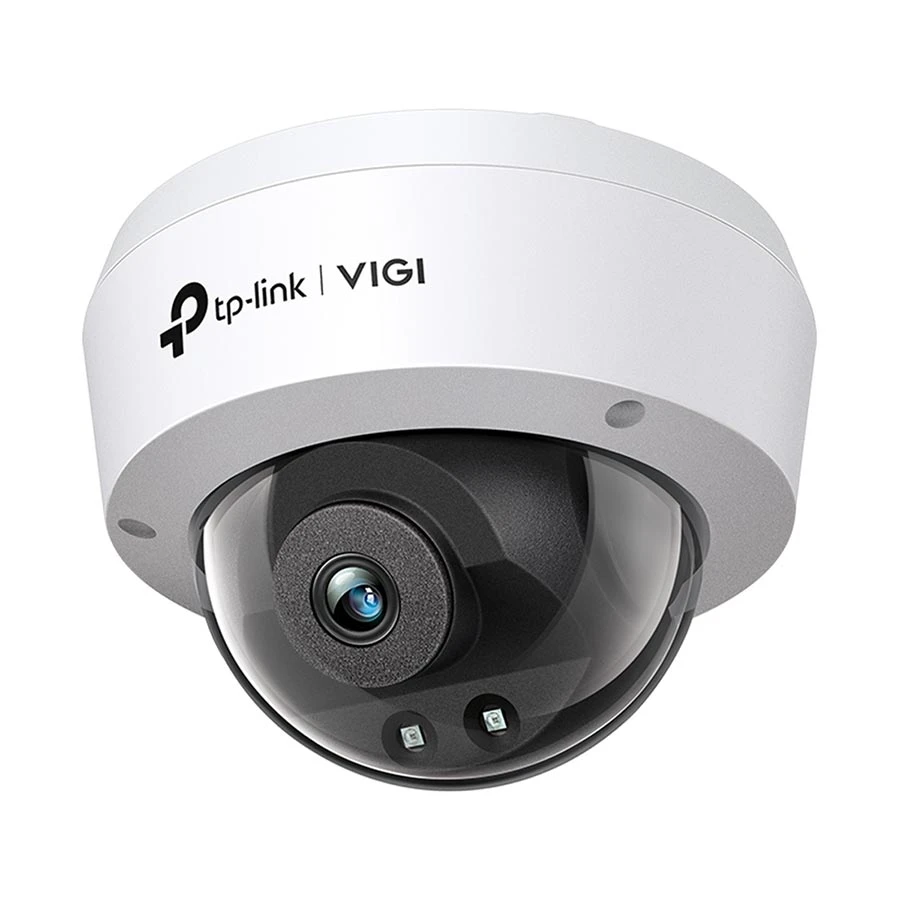

TP-Link VIGI C220I
Usage
Indoor & Outdoor
Type
IR Dome IP Camera
Camera
Number of Camera
1
Camera Type
Fixed
Mega Pixels (MP)
2.0
Max. Camera Resolution
1920 x 1080
Secondary Camera Type
Not Applicable
Secondary Camera Mega Pixel (MP)
Not Applicable
Secondary Camera Max Resolution
Not Applicable
Sensor Type.
1/3 Inch Progressive Scan CMOS
Resolution
Main Stream: 1920×1080, 1280×960, 1280×720, Sub-Stream: Resolution: 704×576, 640×480, 352×288, 320×240
Shutter Speed
1/3 to 1/10000s
Slow Shutter
Yes
Day & Night
IR Cut Filter
Night Vision
Yes
Night Vision Mode
Black and White
S/N Ratio
>=52dB
Lens
Number of Lens
Single Lens (Primary)
Lens
2.8mm
Lens Mount
M12
Focal Length
2.8mm
PTZ
No
Viewing Angle.
106.5 Degree (D)
General Function
Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Dual-Stream
Yes
Frame Rate
Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps, Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Noise Reduction
Yes
Digital Noise Reduction (DNR)
3D DNR
Wide Dynamic Range (WDR)
DWDR
Network & Connectivity
Sim Supported
No
Sim Network Type
Not Applicable
Interface(s)
1 x RJ45 10/100M Self-Adaptive Ethernet Port
Wi-Fi
No
Security
Security
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Password Protection
Yes
Motion Detection
Yes
Human Detection
Yes
Water Protection
Yes
Weather Proof
Yes
Simultaneous Live View
3 Main Streams & 3 Sub-Streams
Technical Info
Scanning System
Progressive
Video Type
Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264
Wavelength
850nm
Mic & Speaker
No
Ingress Protection Grade
IP67
Working Distance
45 Meter
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Physical Description
Form-Factor
Dome
Storage Type
No
Body Material
Plastic
Color
White
Dimensions
115 x 86 x 115mm
Weight (gm)
26 gm
Relevant Accessories (Not Included)
1 x VIGI Network Camera, 1 xd Quick Start Guide, 1 x Waterproof Cable Attachments, 1 x Mounting Accessories.
Power
Battery Capacity
Not Applicable
Battery Backup
No
Battery Backup Time
Not Applicable
Power Supply
PoE (802.3af/at, class 0)
Approx. Power Consumption
PoE: Class 0
Operating Temperature
-30 Degree C – 60 Degree C
Storing/Storage Temperature
-40 Degree C – 60 Degree C
Operating Humidity
95% or Less (Non-Condensing)
Storing/Storage Humidity
95% or Less (Non-Condensing)
Warranty
Warranty Details
2 Years (Without Adapter)
Additional Info
Others
Day/Night Switch: Unified/ Scheduled/ Auto, IR Working Distance: 30m, Aperture: F2.2, Viewing Angle: 2.8mm: 88.2 Degree/48.7 Degree/106.5 Degree, Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR, API: ONVIF, Simultaneous Live View: 3 Main Streams & 3 Sub-Streams, Certifications: CE/BSMI/VCCI/ONVIF, Image Enhancement: BLC/3D DNR/HLC/SmartIR, Video Bit Rate: 64 Kbps to 4 Mbps, DORI Distance: Detect: 45 m (149 ft), Observe:19 m (62 ft), Recognize: 9 m (30 ft), Identify: 5 m (15 ft), Range: Pan: 0 Degree to 355 Degree, Tilt: 0 to 75 Degree.
Specialty

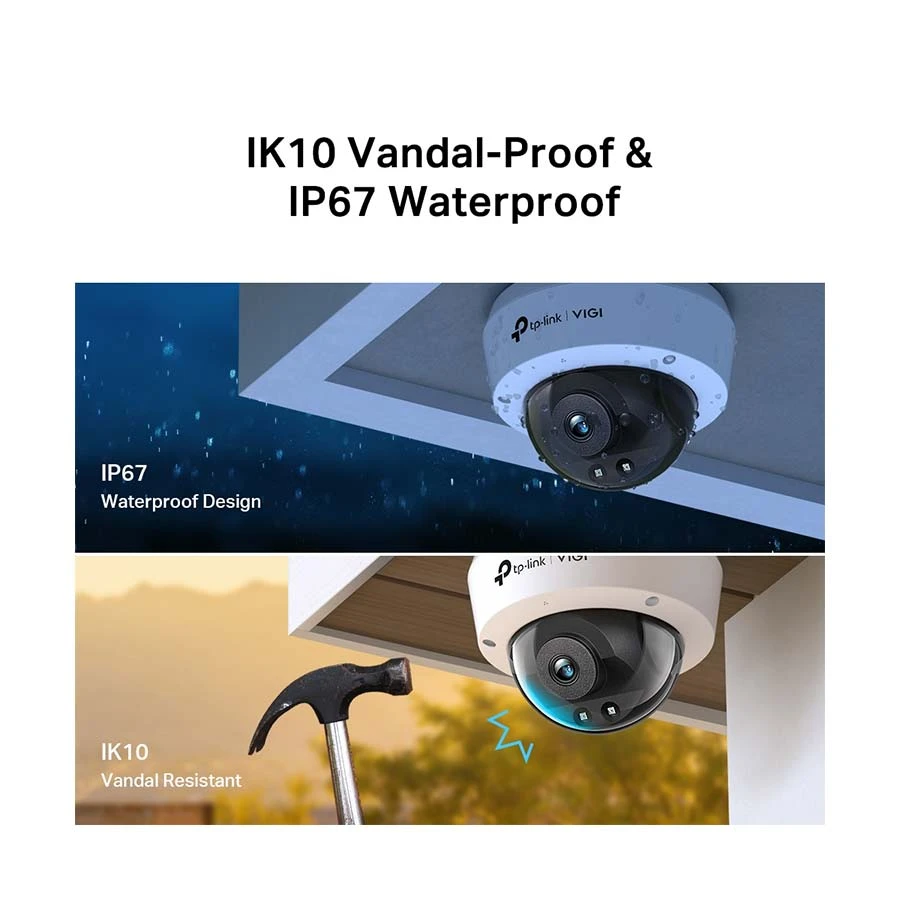

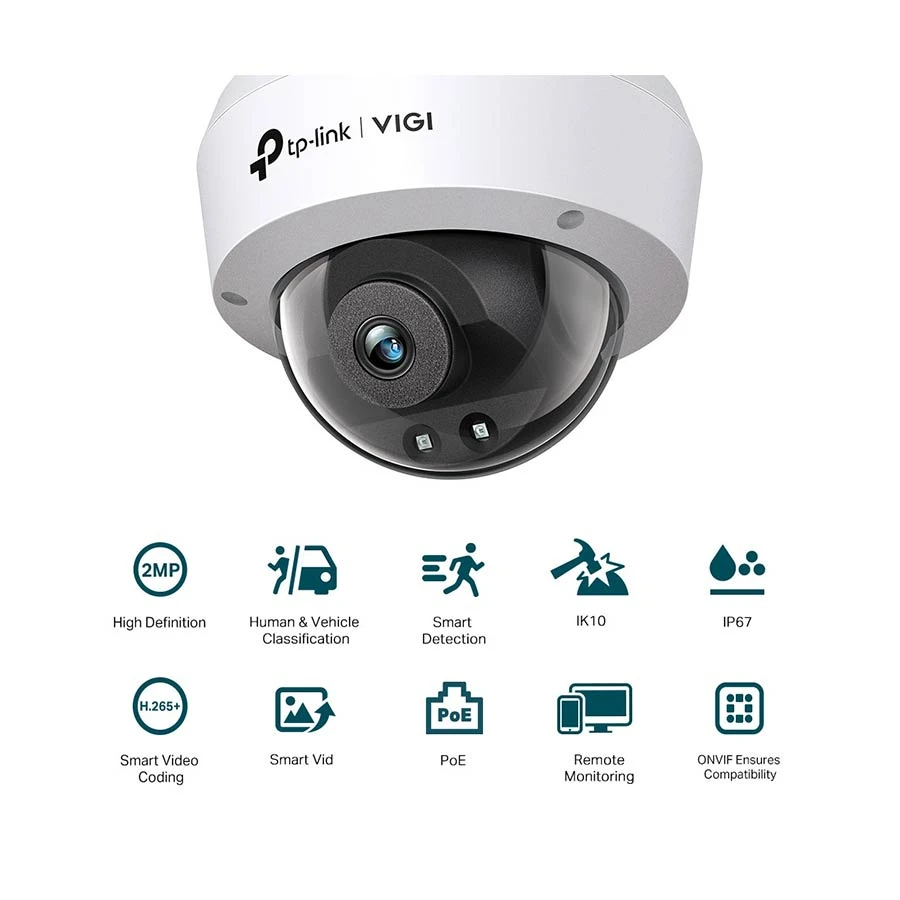

Client: VIGI App, VIGI Security Manager, VIGI NVR, Web Browser: Network, Cloud, Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login), Alarm Linkage: Message Push, Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90 Degree/270 Degree), 2MP Full-High Definition: The VIGI C220I camera comes with 2MP – more than enough pixels to pick up some of the more discrete details. Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications. Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you`ve set, obstructs the camera, or removes/abandons objects. IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design.
Country Of Origin
China
Made in/ Assemble
China
