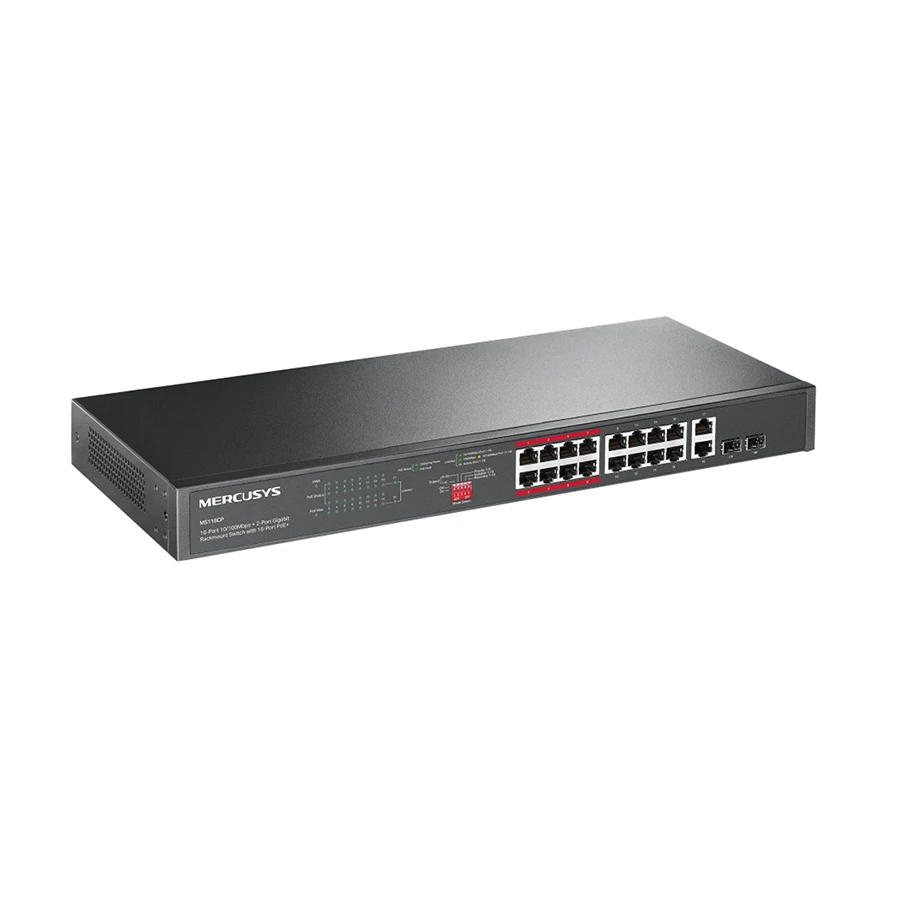

MERCUSYS MS118CP 16-Port Unmanaged Rackmount POE Switch

Brand: MERCUSYS

Quick Overview

16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots.
High PoE power budget with up to 30 W for each PoE port and 190 W for all PoE ports.
Up to 250 m data and power transmission under extend mode specially designed for surveillance system.
Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor.
Isolation Mode allows one-click client traffic separation for higher security and performance.
PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
Easy to use, with no configuration and installation needed.

Original price was: 10,800.00৳ .Current price is: 10,400.00৳ .

Add to wishlist

15 People watching this product now!

Payment Methods:

Description

General

Brand

MERCUSYS

Model

MERCUSYS MS118CP

Type

Network Switch

Ports & Slots

Number of Total Port

18 Port

Gigabit Port

SFP Port

PoE Port

Technical Info

PoE

Yes

Manageability

Unmanaged

Interface(s)

16 x PoE+ 10/100 Mbps RJ45 Ports, 2 x 10/100/1000 Mbps RJ45 Ports, 2 x Combo Gigabit SFP Slots.

Data Transfer Rate

10/100/1000 Mbps

Connector Type

RJ45

Switching Capacity

7.2 Gbps

Physical Description

Fan/Fanless

2 Fan

Body Color

Black

Form Factor

Rackmount

Dimension

440 x 180 x 44mm

Packet Contents

MS118CP, Power Cable, Installation Guide, Two mounting brackets and the fittings.

Power

Power Supply

100 – 240V AC, 50/60Hz

Approx. Power Consumption

13.07 W (220/50Hz. no PD connected), 218.91 W (220/50Hz. with 190W PD connected)

Warranty

Warranty Details

1 Year (Without Adapter)

Additional Info

Others

PoE Ports: RJ45, Standard: 802.3at/802.3af compliant, PoE Ports: Ports 1-16, PoE Power Budget: 190W. Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100 ohm STP (maximum 100m), 100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100 ohm STP (maximum 100m), 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m), EIA/TIA-568 100 ohm STP (maximum 100m), 1000BASE-X MMF, SMF. Physical Security Lock: Yes. Jumbo Frame: 10KB. MAC Address Table: 8K. Max Heat Dissipation: 44.57 BTU/h (no PD connected), 746.48 BTU/h (with 190W PD connected). Transfer Method: Store-And-Forward. Compatible With IEEE 802.3at/af Compliant PDs. Extend Mode (Up to 250m PoE power supply and data transmission). Priority Mode (Ports 1-8). Isolation Mode (Ports 1-16). PoE Auto Recovery (Ports 1-16). MAC Address Auto-Learning And Auto-Aging. IEEE802.3x Flow Control. Packet Forwarding Rate: 5.36 Mpps. Certifications: CE, FCC, RoHS. Operating Temperature: 0-50 Degree C. Storage Temperature: -40-70 Degree C. Operating Humidity: 10-90% RH non-condensing. Storage Humidity: 5-90% RH non-condensing.

Specialty

16x PoE+ 10/100 Mbps RJ45 ports, 2x Gigabit RJ45 ports, and 2x combo Gigabit SFP slots. High PoE power budget with up to 30W for each PoE port and 190W for all PoE ports. Up to 250 m data and power transmission under extend mode specially designed for surveillance system. Priority mode for ports 1-8 to guarantees the quality of sensitive applications like video monitor. Isolation Mode allows one-click client traffic separation for higher security and performance. PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices. Easy to use, with no configuration and installation needed.
